Slot opening from 0.02mm-20mm.
22 fully automatic production line, 7x24 hours uninterrupted production.
Strictly selected steel supplier to ensure the stable quality and price.
Complete production line, from wiredrawing to wire rolling and finished product.
DSM Screen also known as side hill screens, parabolic screens, run down screens, gravity screens and Sieve Bend Screen, Sieve Bend Screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
DSM Screen are made of stainless steel Wedge Wire. They are consisting of a concave curved profile wire screen, which are inserted into a stainless steel frame. The Sieve Bend are manufactured by wrapping and welding stainless steel V-shaped profile wire and support rods. Then the panel screens are cutting and curved into arc screen.
Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.
A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.
Waste water cleaning up
Condensate water filtration
Column bottoms purification
45° DSM screen is suitable for thickening and screens
120° DSM screen is used for separating water suspension

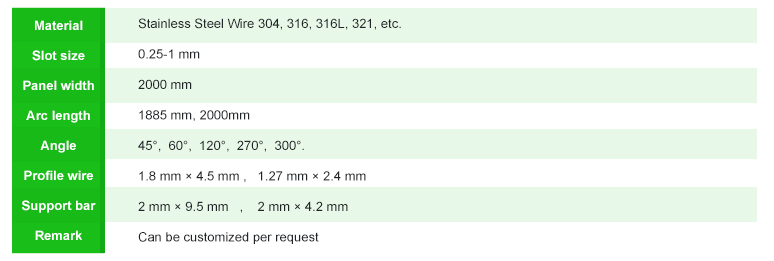

Above is the summary info about DSM Screen, here shows the specifications about profile wire and the screen
