Stainless Steel Bag Filter Housing

Name: Bag Filter Housing
Brand: JX Filtration

Description

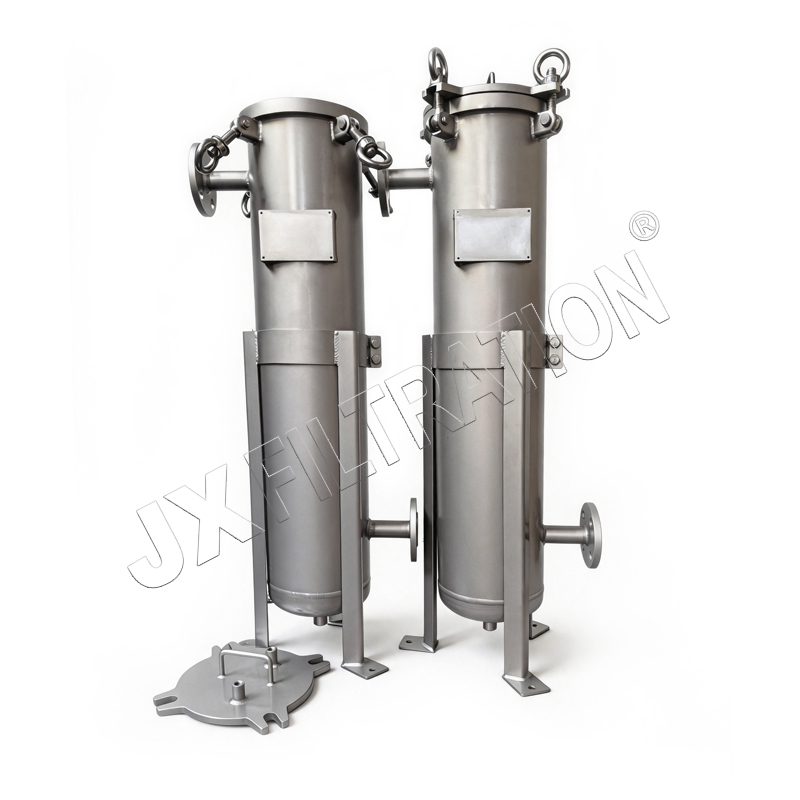

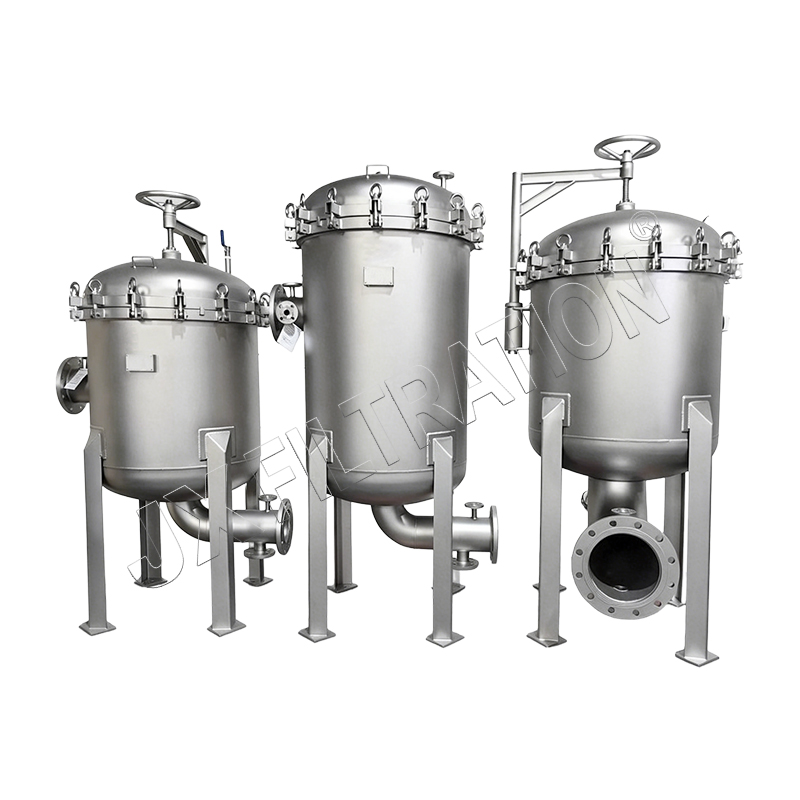

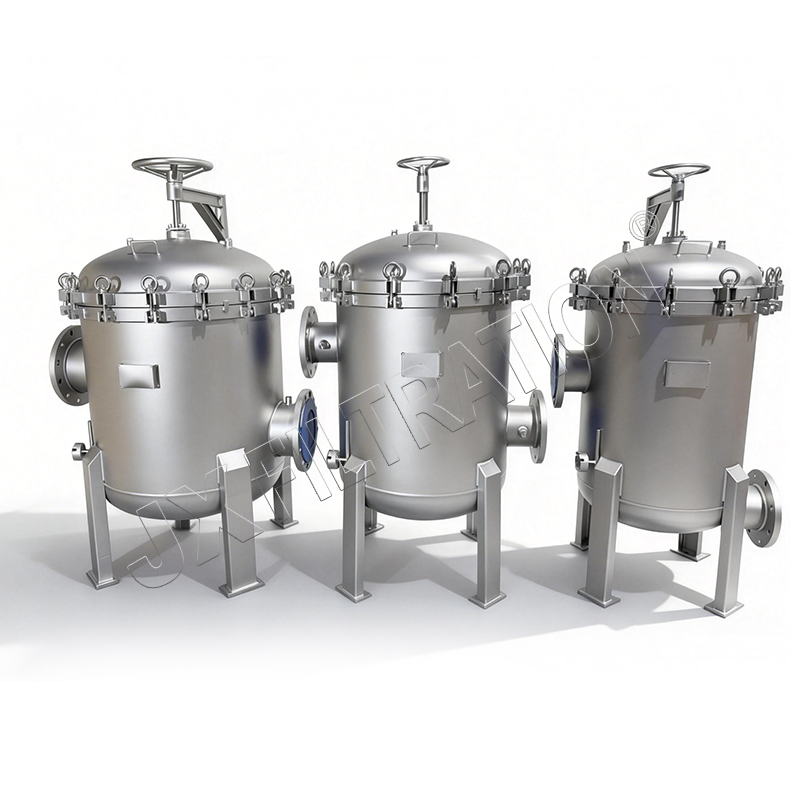

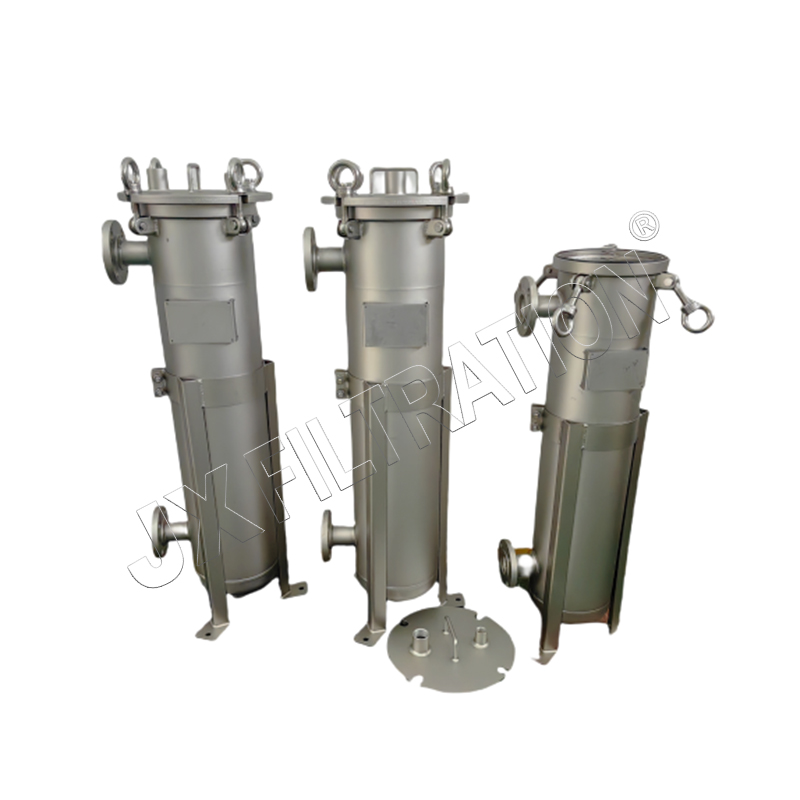

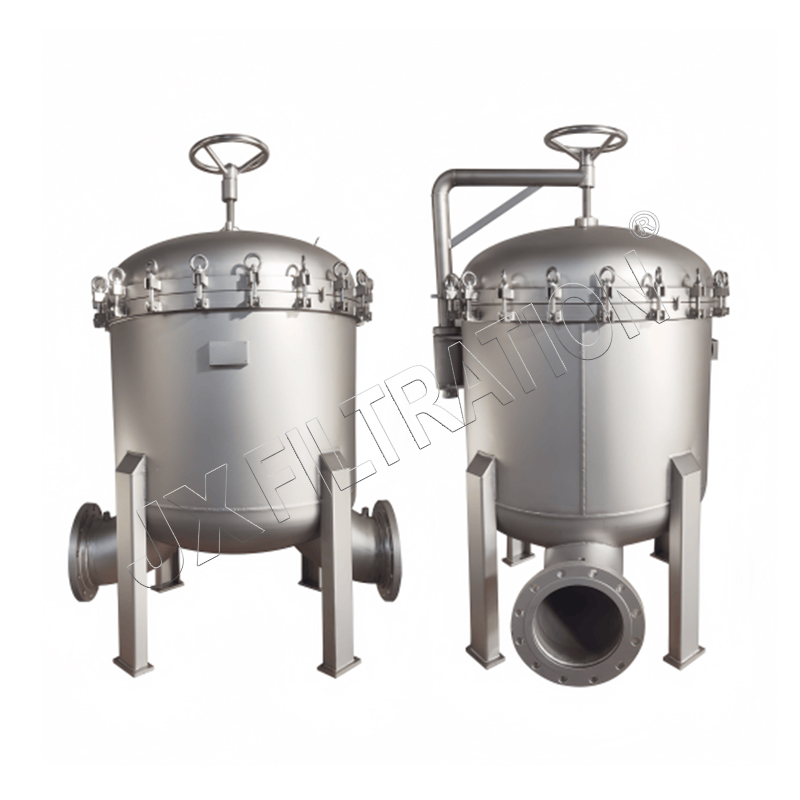

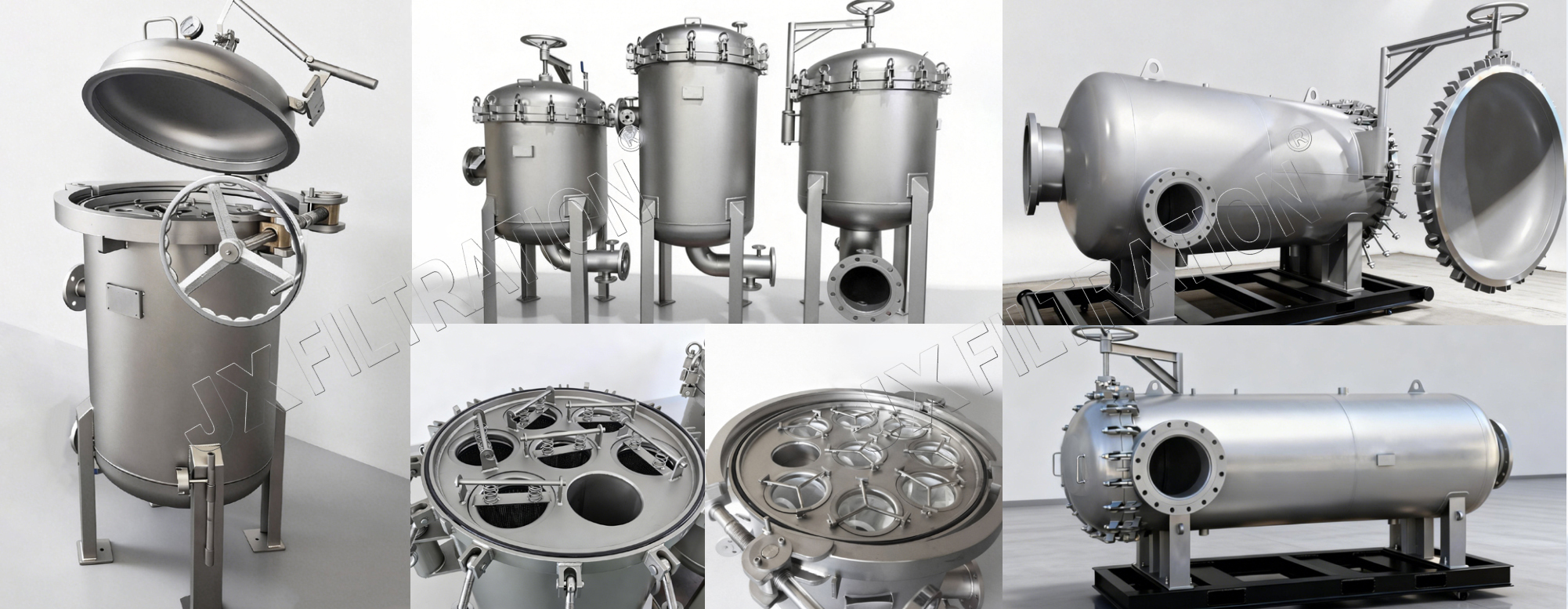

JX Filtration offers a full range of bag filter housings from single-bag to 48-bag models, with flexible customization to meet different flow rates and filtration requirements. Available in stainless steel 304 and stainless steel 316, our housings feature robust construction, easy operation, and reliable filtration performance for a wide range of industrial applications

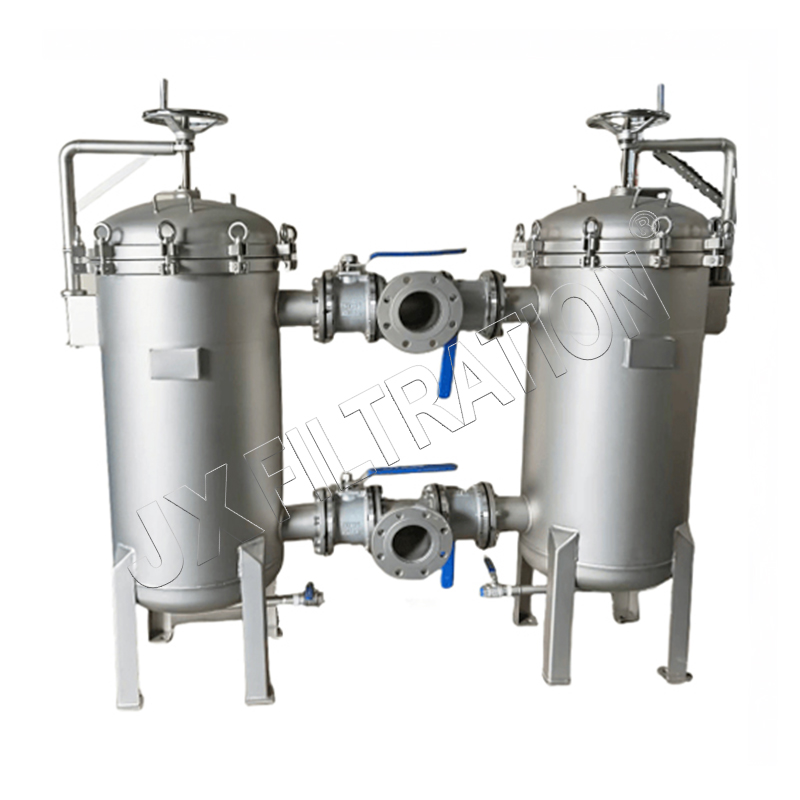

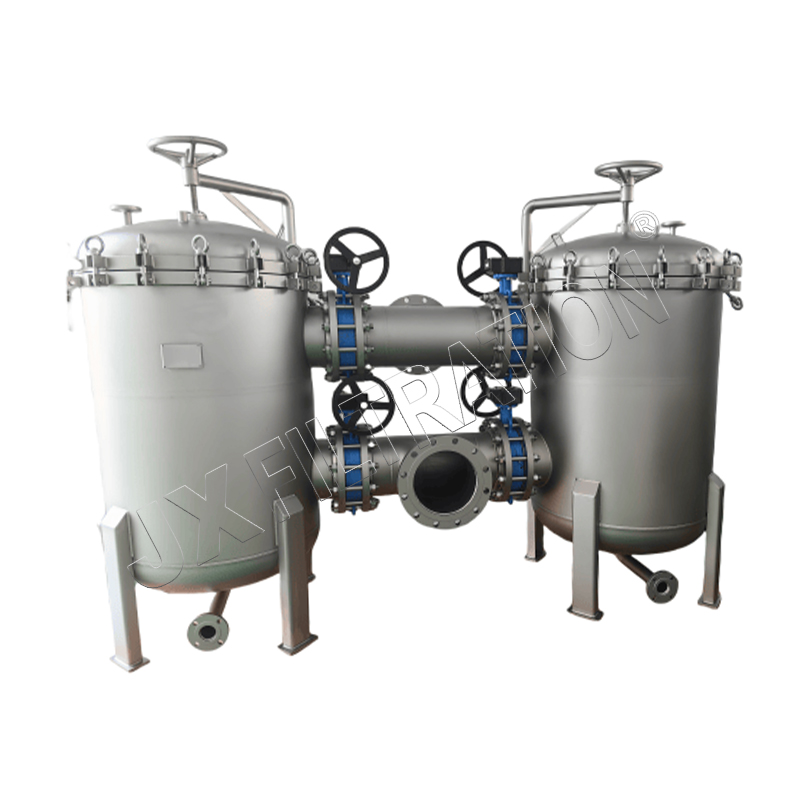

Bag filter housing supplier offering single-bag, multi-bag, and duplex filter housings for industrial filtration and water treatment systems.

Opening Types

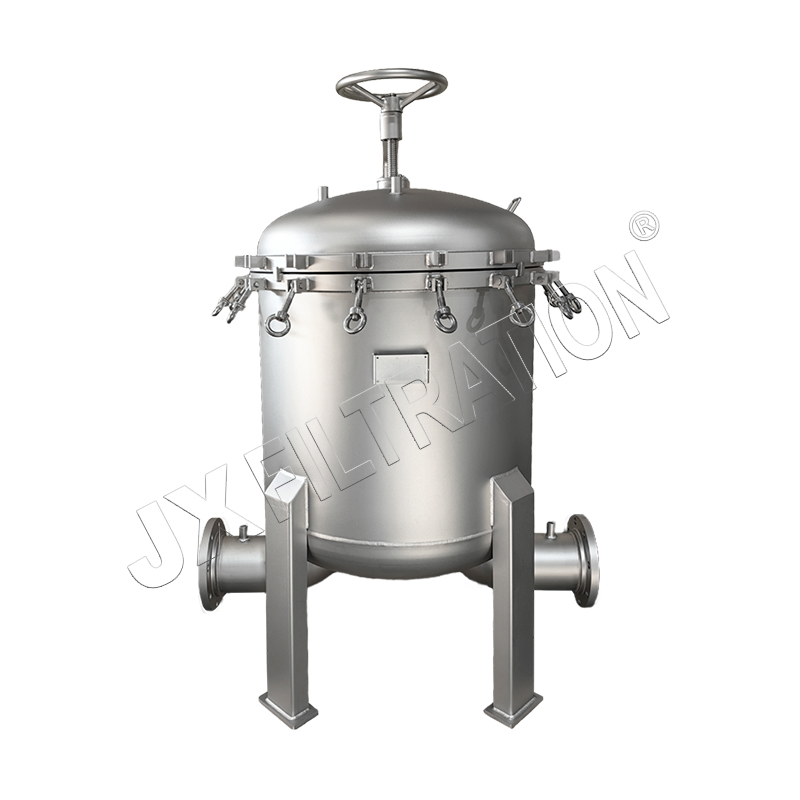

Swing arms: handwheel cover opening design, widely used and most economical.
Quick opening cover: mechanical hoop opening design (no bolt), easy and safe operation, time and labor-saving.
Spring-open cover: 105° cover opening angle to avoid the trouble of insufficient space at the right and left.
Rotating type cover: balancing rotation at right and left to avoid the trouble of insufficient height space.

Quick-opening-cover

Rotating-type-cover

Spring-open-cover

Swing-arms

Superior Quality & Durability

Comparison Item	JX Filtration	Other Manufacturers
Welding	Full welding inside & outside	Partial / incomplete welding
Welding Protection	100% Argon-shielded welding	Potential burn-through & oxidation
Internal Corners	Fully welded, including corners & dead zones	Unwelded dead zones may remain
Weld Treatment	Pickling & passivation on internal surfaces and welds	Limited weld treatment
Corrosion Resistance	Enhanced corrosion resistance, especially at welds	Higher risk of corrosion at oxidized areas
Service Life	Longer-lasting construction (3–5 year service life)	Potential early leakage around welds

Bag filter housing manufacturer in China, providing stainless steel bag filtration systems for water treatment and industrial applications.

Product Structure & Selection Guide

To select and quote the right housing, please share the following information:

Flow Rate: Required flow rate.
Fluid Details: Fluid name, pH, operating temperature, and viscosity.
Solids Content: Percentage of solids in the fluid.
Filtration Rating: Required filtration rating (microns).
Operating Pressure: System working pressure.
Connections: Inlet and outlet connection size and type.
Housing Material: Preferred material, e.g. SS304, SS316L, or carbon steel.
Special Requirements: Any additional requirements, such as insulation or food-grade sanitary standards.

Not sure about some of these? Send what you have — we can help with selection and issue a drawing for confirmation.

Stainless steel bag filter housing design for reliable liquid filtration in water treatment and industrial processes.

Advantages

Higher capacity with small size
Labor-saving: easy to replace filter bag
Cost-saving: filter bag reusable after cleaning
High precision: can reach 0.5μm
Low leakage risk
Energy-saving: low operation cost

Application

Chemical Industry
Pharmacy
Automobile Industry
Light Industry
Food Industry
Electroplating Industry

Materials & Specifications

Materials: Stainless steel 304, 316, 316L, and other special materials.

Inlet/Outlet: Side-in & Side out / Side-in & bottom out / Bottom-in & bottom out.

FAQ

What is a bag filter housing used for?

Bag filter housings are used for bulk solids removal, process protection, and applications with heavier or variable solids loads. Typical industries include chemical processing, petrochemical, food and beverage, pharmaceutical, water treatment, and wastewater treatment. They are particularly effective where large amounts of suspended solids must be removed economically.

What is the difference between a bag filter and a cartridge filter?

Bag filters use a fabric or mesh bag as the filter medium, offering high dirt-holding capacity and fast changeout for bulk solids removal. Cartridge filters use pleated, melt-blown, or membrane elements for finer, more controlled filtration. Generally, choose bag filters for heavier solids loads and economical bulk removal; choose cartridge filters for final barrier filtration, RO/DI pretreatment, or high-purity applications.

How often should a bag filter be replaced?

Replacement depends on solids loading, flow rate, and the pressure differential across the bag. A common guideline is to replace the bag when differential pressure reaches 0.5–1.0 bar above the clean starting pressure, or when flow rate drops noticeably. In heavy-load applications, bags may require daily or weekly changes; in cleaner streams, replacement intervals can extend to several weeks.

What materials are available for bag filter housings?

Standard housing materials include carbon steel, stainless steel 304, 316, and 316L. For highly corrosive environments, duplex stainless steel 2205 and other specialty alloys are available. Filter bags are available in polypropylene, polyester, nylon, PTFE, and other materials to suit different chemical compatibility and temperature requirements.

How do I choose the right bag filter housing?

Consider the fluid type and chemical compatibility, required flow rate, operating pressure and temperature, solids loading and particle size, bag size and micron rating, connection type, and available installation space. Providing these details in your inquiry ensures the housing matches your process line and maintenance preferences.

Can bag filter housings be customized?

Yes. We customize housing material, bag size and quantity, inlet/outlet configuration and connection standards, cover opening type, surface finish, and internal weld treatment according to your specific process requirements. Custom designs are available for special pressure ratings, temperature conditions, and space constraints.
