Name: Cartridge Filter Housing
Brand: JX Filtration

Description

JX Filtration offers a comprehensive range of cartridge filter housings designed for precision liquid clarification and fine filtration across diverse industrial applications. Cartridge filter is a device with a filter element as the core filter component, with a structure typically consisting of a housing and a replaceable filter element.

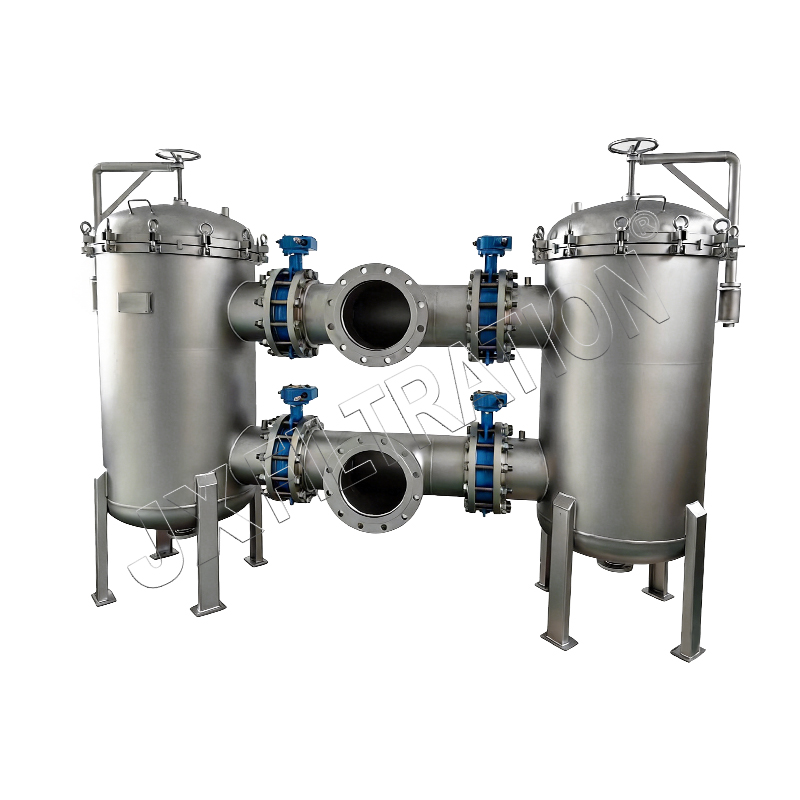

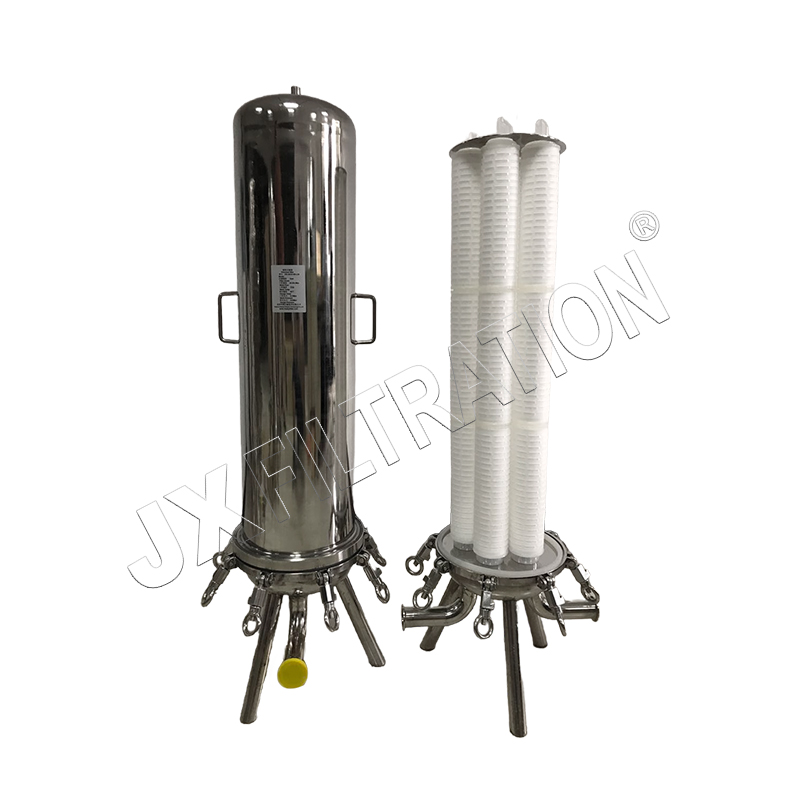

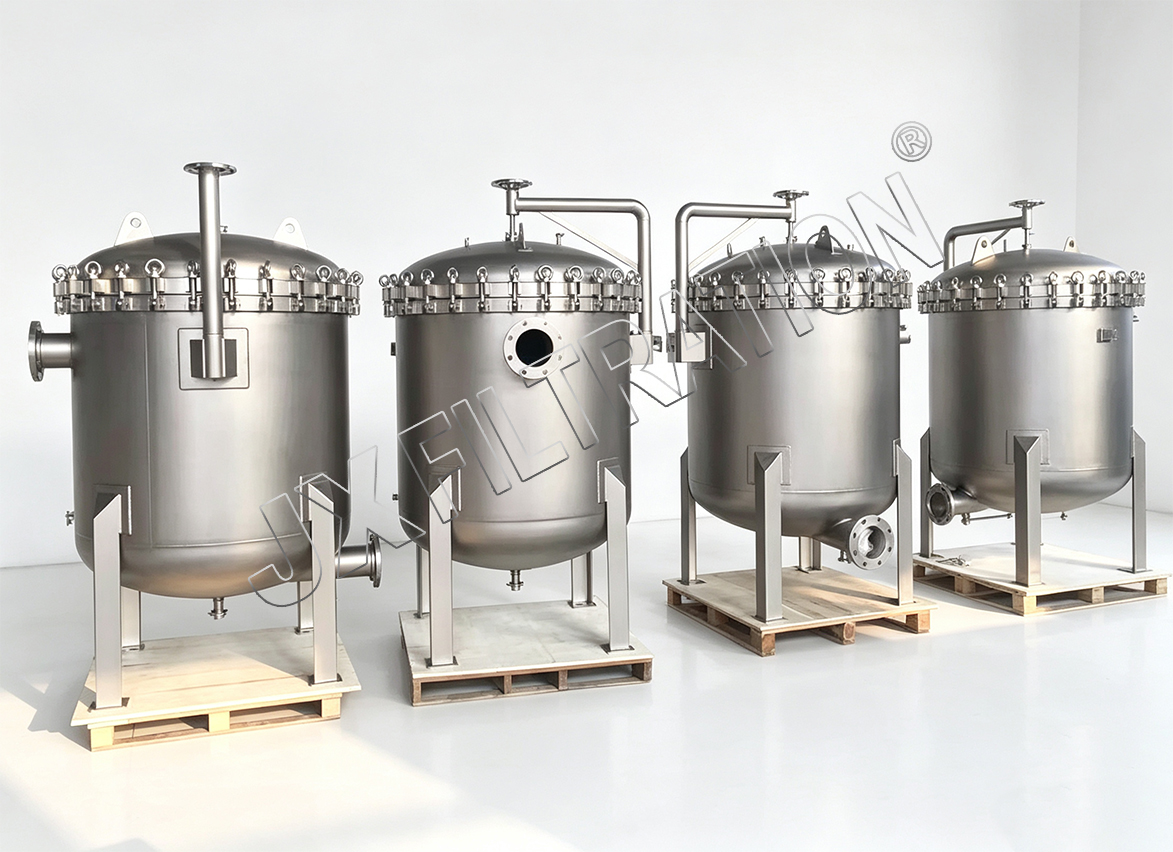

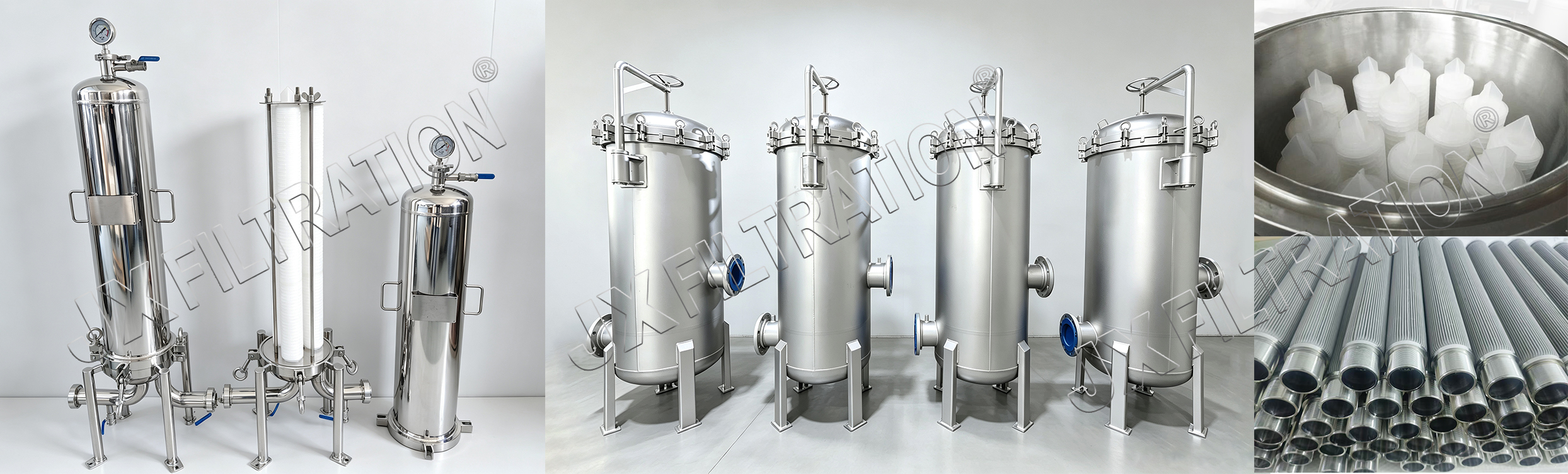

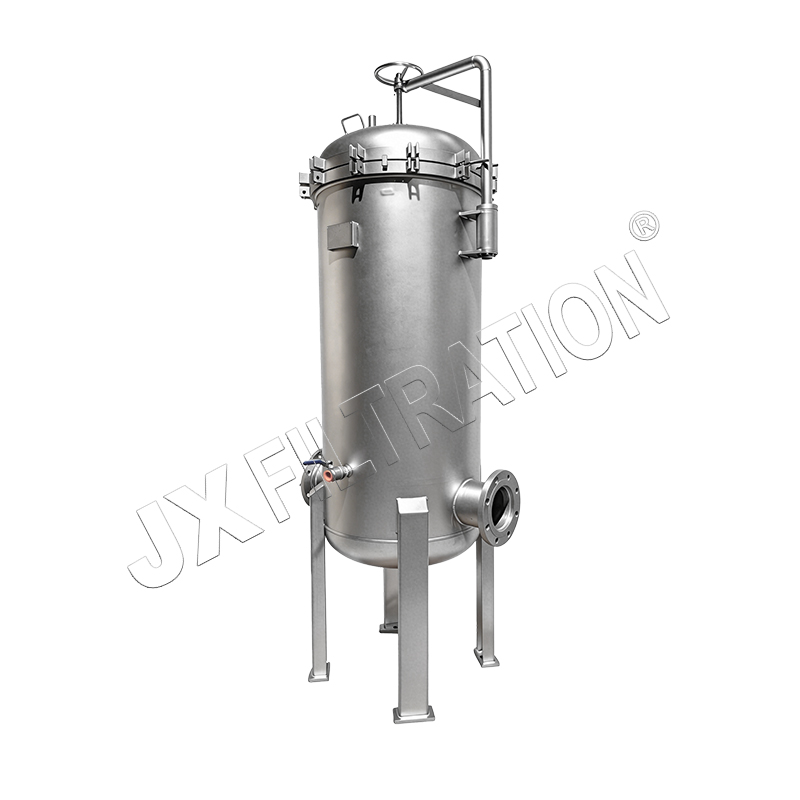

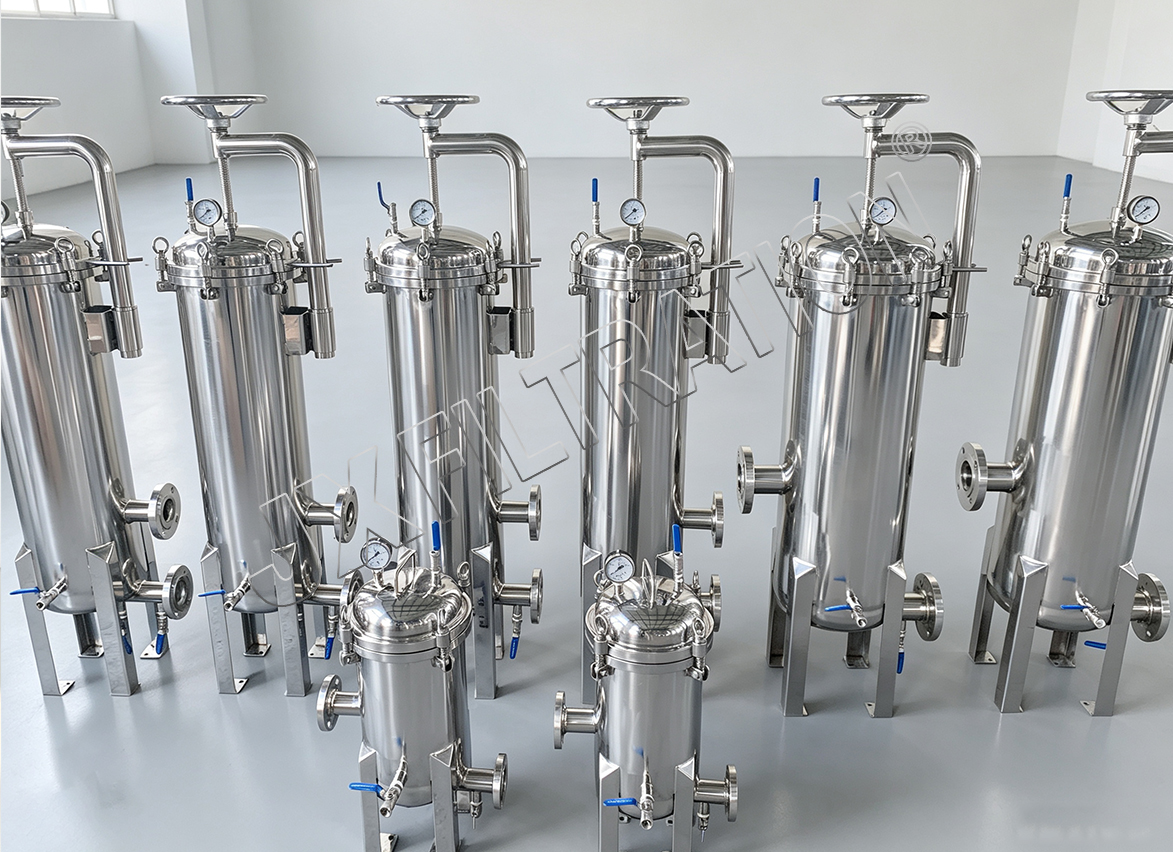

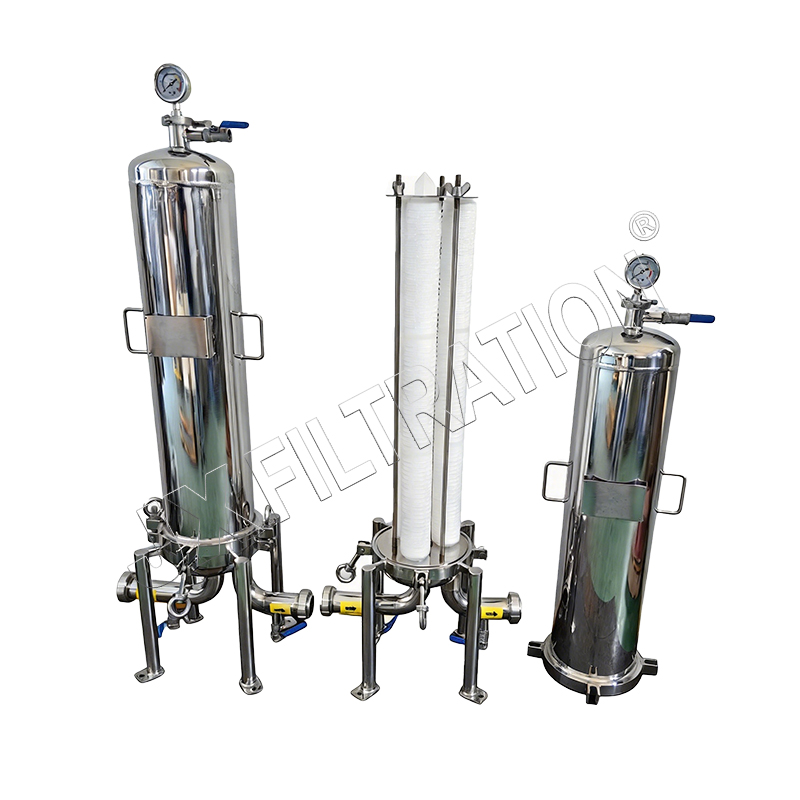

Available in single-cartridge and multi-cartridge configurations, our cartridge filter housings accommodate a wide variety of filter cartridges—including melt-blown PP, pleated, sintered, and wound types—to meet different temperature, chemical compatibility, and precision requirements. With filtration precision ranging from 0.1 to 100 microns and flow capacities up to 200 m³/h per housing, they deliver consistent, high-quality filtration for water treatment, chemical processing, pharmaceutical, food and beverage, and many other industries.

Working Principle

Filtration Stage: Liquid enters the housing through the inlet and passes through the filter cartridge. The filter medium—whether melt-blown PP fibers, pleated membrane, sintered metal, or wound yarn—intercepts and retains solid particles, microorganisms, colloids, and other impurities on or within the filter material. Clean liquid flows out from the outlet, ready for downstream processing. Filtration can be configured as out-to-in (standard) or in-to-out depending on the cartridge type and application requirements.

Cartridge Retention: As filtration proceeds, contaminants accumulate on the filter medium. The cartridge's dirt-holding capacity determines the service life between replacements. In melt-blown PP cartridges, the gradient density structure—with progressively finer pores from outside to inside—allows the entire filter body to participate in particle capture, significantly extending service life compared to surface-type filters.

Cartridge Replacement: When the differential pressure reaches a preset level or when the recommended service interval is reached, the system is depressurized, the housing opened via quick-opening or bolted closures, and the spent cartridge is removed and replaced with a fresh one. The housing is reusable, making cartridge filters an economical long-term solution.

Advantages

High filtration precision — 0.1-100 μm, coarse to ultra-fine
Filter cartridges available in PP, PTFE, PES, nylon, stainless steel, and titanium
Reusable housing, easy cartridge change, low maintenance
High dirt-holding capacity, longer service life
Flexible configuration — single/multi-cartridge parallel, multi-stage series

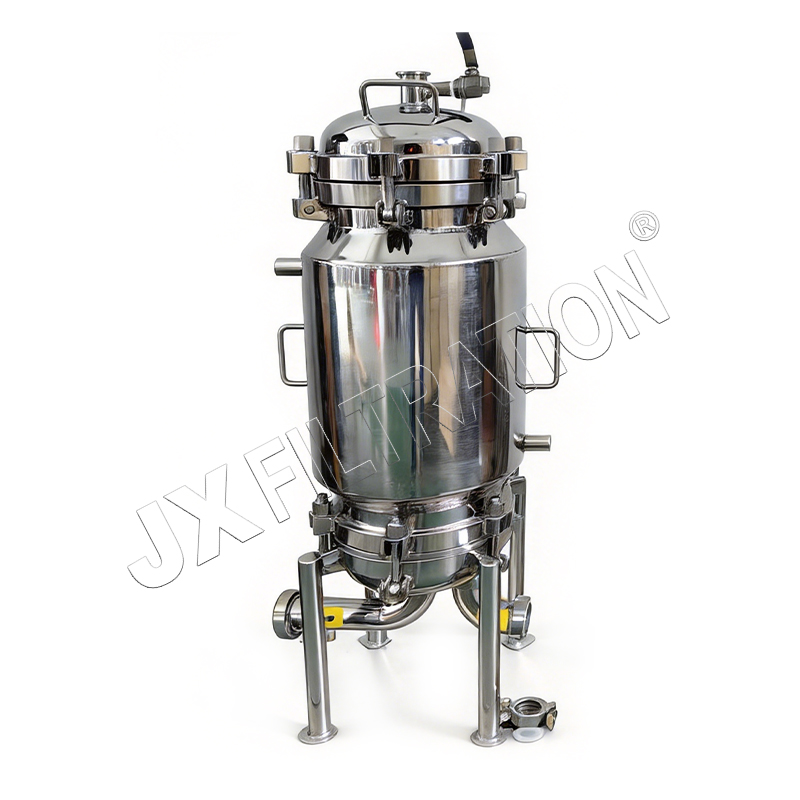

Optional food-grade design with no dead corners and electropolished internals
PP up to 80°C, PTFE up to 260°C with steam sterilization capability (max. 140°C)
Multiple connection options — thread, clamp, flange in ANSI/JIS/GB
Leak-free guarantee — free replacement if leakage occurs

Application

Water Treatment
Petrochemical & Chemical
Food & Beverage
Pharmaceutical
Paints & Coatings
Cosmetics
Electronics
Machining & Metalworking
Oil & Gas

Materials & Specifications

Housing Materials: Carbon steel, stainless steel 304, 316, 316L, SS2205 duplex stainless steel, and titanium.

Cartridge Materials: PP (polypropylene melt-blown/pleated), PTFE (polytetrafluoroethylene), PES (polyethersulfone), nylon, sintered stainless steel, titanium rods.

Cartridge Interfaces: Flat head, 222 interface, 226 interface, threaded interface.

Key Parameters

Parameter	Range
Flow Capacity	Up to 200 m³/h per housing
Filtration Precision	0.1 – 100 microns
Design Pressure	Up to 1.6 MPa
Operating Temperature (PP)	≤80°C
Operating Temperature (PTFE)	≤260°C (continuous); steam sterilization ≤140°C
Housing Configurations	Single-cartridge / Multi-cartridge

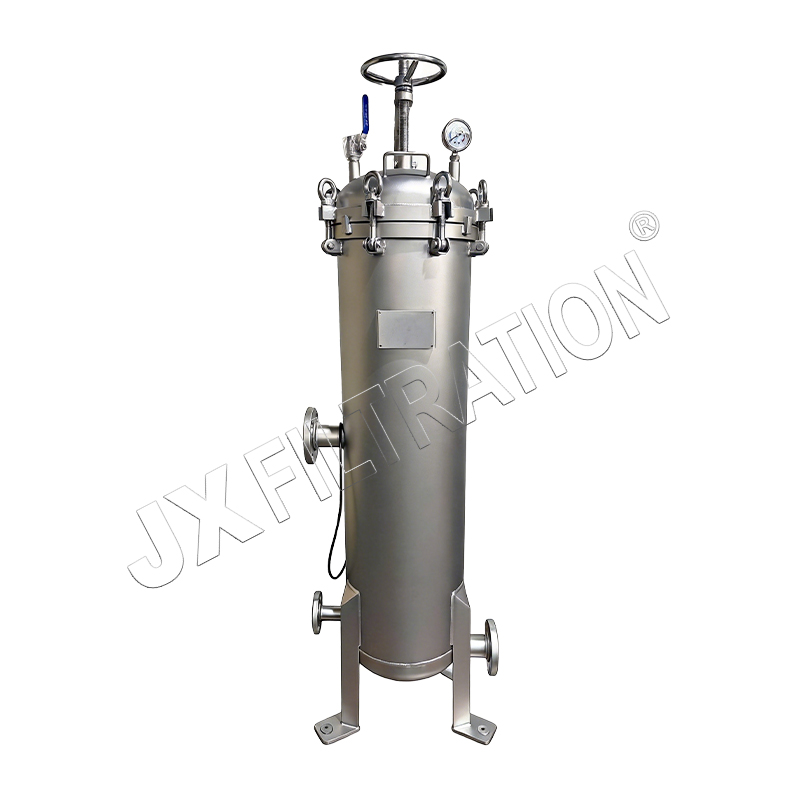

Closure Types	Quick-opening clamp / Bolted flange
Connection Types	Threaded / Quick-connect clamp / Flanged (ANSI/JIS/GB)
Cartridge Types	Melt-blown PP, pleated (PP/PTFE/PES/nylon), sintered, wound
