Name: Self-Cleaning Filter
Brand: JX Filtration

Description

JX Filtration offers a full range of self-cleaning filters designed for automated, uninterrupted liquid filtration across diverse industrial applications. These filters integrate filtration, cleaning, and discharge functions into a single compact unit, enabling continuous online operation without the need for manual disassembly or shutdown. Available in brush type, scraper type, and hydraulic type configurations, our self-cleaning filters accommodate a wide range of fluid characteristics—from low-viscosity water to high-viscosity coatings, paints, and resins. With filtration precision from 10 to 3000 microns and flow capacities up to 4000 m³/h, they provide reliable solids removal for water treatment, chemical processing, food and beverage, pharmaceutical, and many other industries.

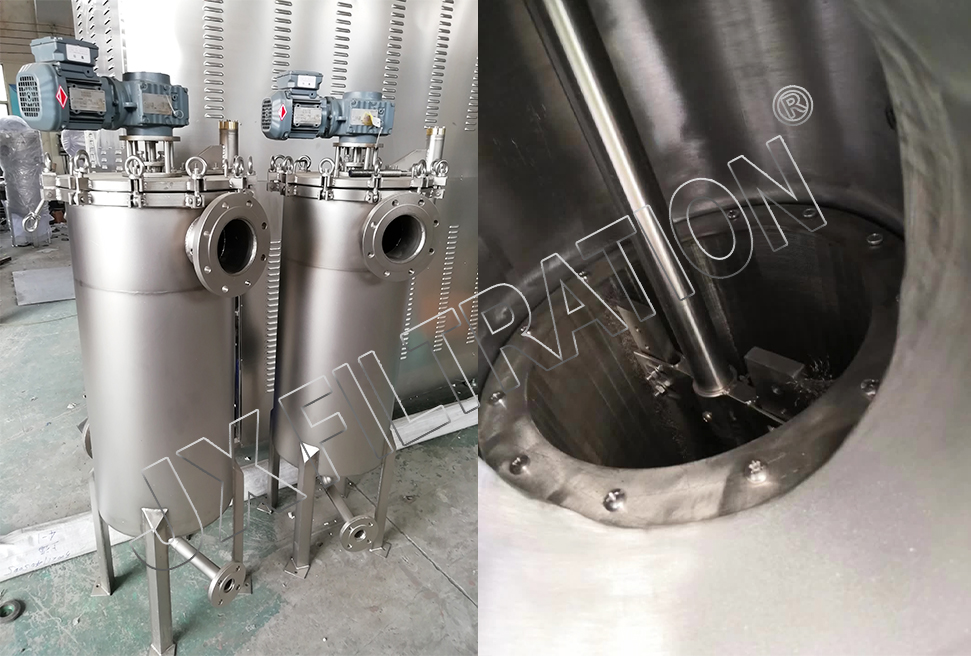

Brush Type

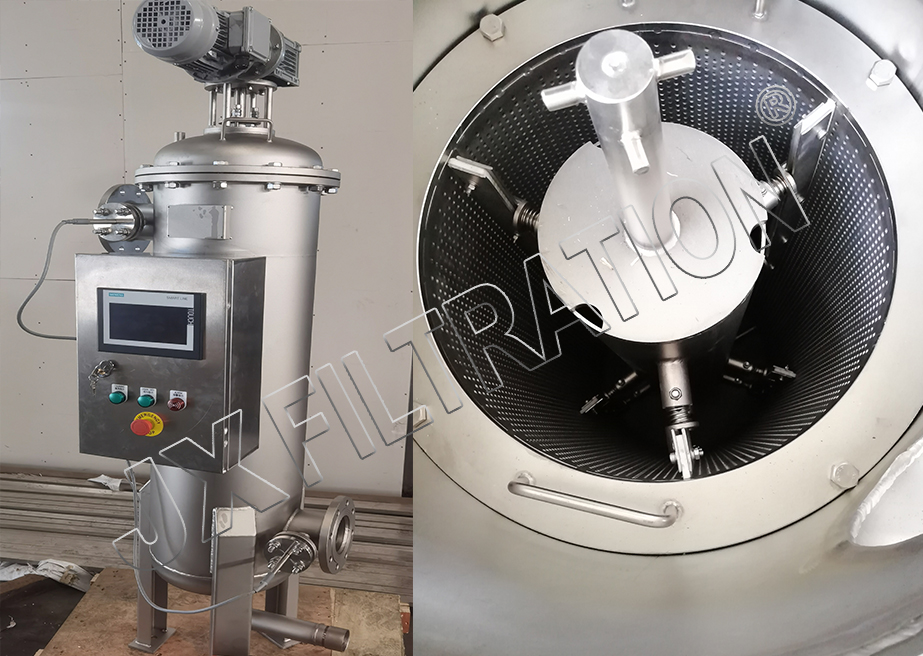

Scraper Type

Working Principle

Filtration Stage: Liquid enters through the inlet and passes through the screen/cartridge, with impurities retained while clean fluid exits via the outlet. Filter elements available in perforated, woven, or wedge wire types.

Cleaning Trigger: Cleaning starts automatically when differential pressure reaches a preset level, a set time elapses, or a manual command is given.

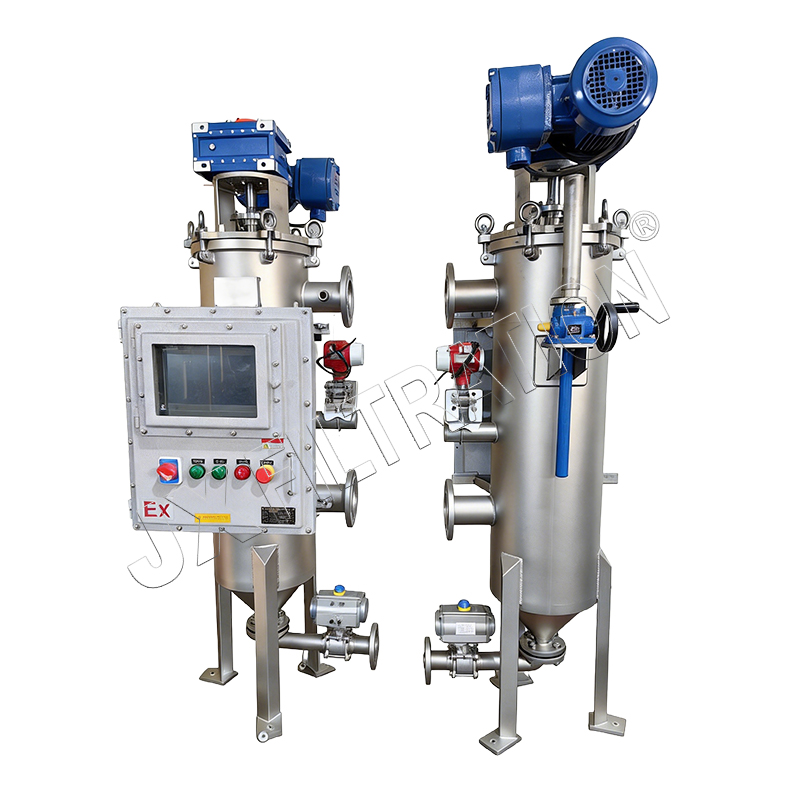

Cleaning Process: Brush/scraper types rotate via motor drive to remove surface impurities; backwash types reverse flow to flush debris; scraper types are especially suitable for viscous fluids. Siemens PLC with touch panel provides centralized control, supporting differential pressure, time, manual, and fully automatic modes.

Discharge Phase: Contaminants are expelled through a drain valve, with continuous fluid supply maintained throughout cleaning to ensure uninterrupted production.

Advantages

Fully automatic cleaning, no manual intervention
Continuous operation without shutdown
10–3000 μm precision — coarse to fine covered
No consumables & low maintenance
Minimal pressure loss & low water consumption
Smart monitoring & unattended operation
Robust construction for demanding conditions
Multiple drive and control options
Versatile installation — vertical/horizontal/skid-mounted available

Application

Water Treatment
Petrochemical & Chemical Processing
Food & Beverage
Pharmaceutical
Paint, Printing Ink & Coatings
Paper & Pulp
Metallurgy & Electric Power
Agriculture
Marine & Oil

Materials & Specifications

Materials: Carbon steel, stainless steel 304, 316, 316L, SS2205 duplex stainless steel, and other corrosion-resistant alloys as required.

Key Parameters

Parameter	Range
Flow Capacity	Up to 4000 m³/h
Filtration Precision	10 – 5000 microns
Working Pressure	0.18 – 1.6 MPa
Working Temperature	≤95°C
Cleaning Time	10 – 200 seconds (adjustable)
Water Loss (Cleaning State)	<0.01 MPa
Control Modes	Differential pressure / Time / Manual / PLC
Filter Element Types	Perforated screen, woven wire screen, wedge wire screen
Cleaning Mechanisms	Brush, scraper, backwash, hydraulic
