Wedge Wire Screen

Wedge Wire also called Johnson Screens. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

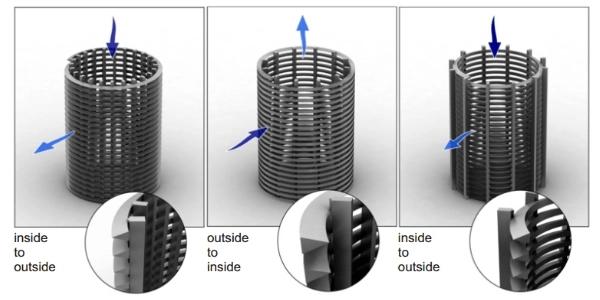

Wedge Wire is composed of working profile and support profile. It is produced on an automotive machine. The support profiles are placed on the suit position of the machine; during the surface profiles are spirally winding, the support profiles are welded onto the surface profiles.

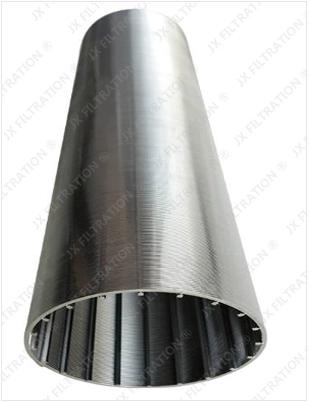

JX Filtration carries out independent technological innovation on the basis of foreign equipment. The improved machine has better roundness, smaller and uniform slot and minimum variance than the previous. The small slot is controlled at 20 microns and the tolerance is controlled at 5 microns. Regardless of the quality control of raw materials and the strict control of the production environment, it guarantees that JX Filtration precision Wedge Cylinders are of high quality. Before leaving the factory, the Wedge Cylinder has been sampled and inspected by the laboratory of our quality inspection department.
