Name: Vibrating Screen Machine
Brand: JX Filtration

Description

JX Filtration offers a full range of vibrating sieve separators from single-deck units to five-deck models, with flexible customization options to suit various materials and separation needs across mining, chemical, food, pharmaceutical, and wastewater treatment applications—precise, efficient, and user-friendly.

A vibrating sieve separator, also known as a vibratory separator, circular vibrating screen, or trommel screen, is a mechanical screening device that uses a motor-driven vibratory motion to separate solid particles by size or remove solids from liquids. The circular vibrating screen operates with a vertical vibration motor equipped with eccentric weights at both the upper and lower ends, generating a three-dimensional motion—horizontal, vertical, and tilted—that is transferred to the screen surface. By adjusting the phase angle of the eccentric weights, the material's movement trajectory can be fine-tuned to optimize separation performance for different liquid viscosities and solid loads.

Working Principle

Vibratory Separator (Circular Vibrating Screen): A vertical vibrating motor serves as the vibration source. Two eccentric blocks are fixed on the motor shaft, producing horizontal, vertical, and inclined three-dimensional motion. By adjusting the phase angle between the two eccentric blocks, different centrifugal forces are generated, changing the material's moving trail and achieving the screening purpose. Undersize liquid and fine particles pass through the mesh, while oversized solids are conveyed to the periphery for discharge.

Advantages

Efficient solid-liquid separation – Removes insoluble solids from slurries, suspensions, and liquids, for both coarse and fine filtration
Self-cleaning, anti-blocking – High-frequency vibration keeps material moving to prevent mesh blinding and ensure consistent throughput

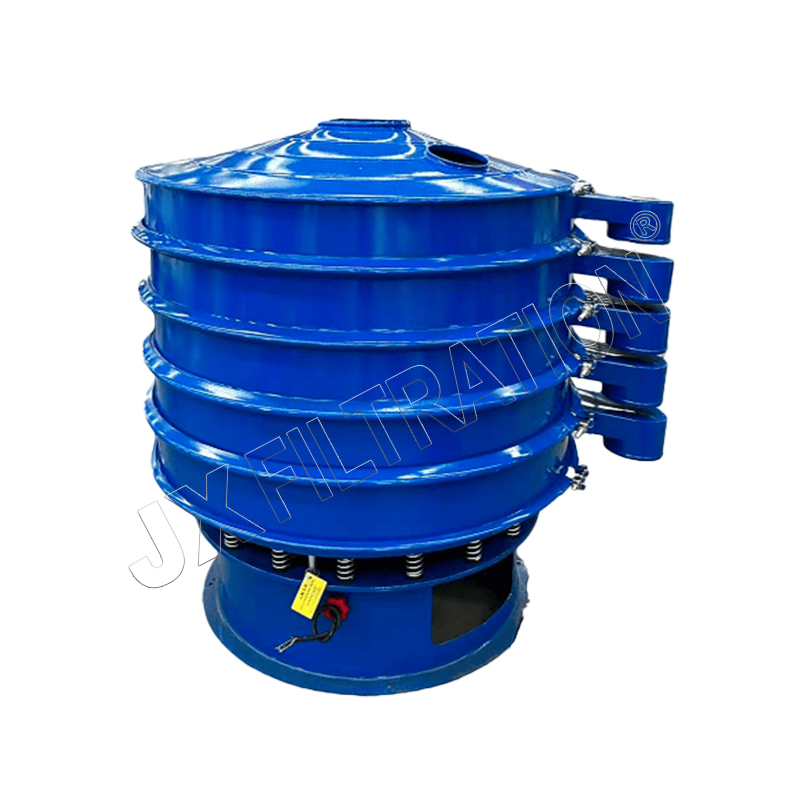

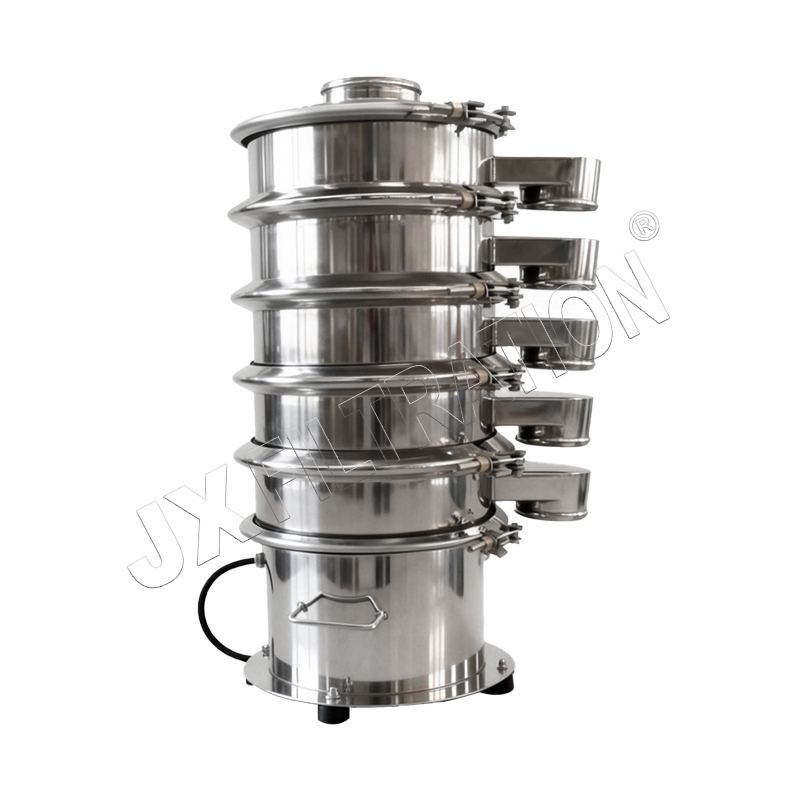

Multi-layer flexibility – 1 to 5 screen decks available, performing filtration and dewatering in one pass, reducing equipment footprint
Quick and easy maintenance – Screen mesh changes take only 3 to 5 minutes, minimizing downtime
Low noise, clean operation – Mirror-polished dust-proof lid prevents overflow and contamination; low-noise design ensures a safer workplace

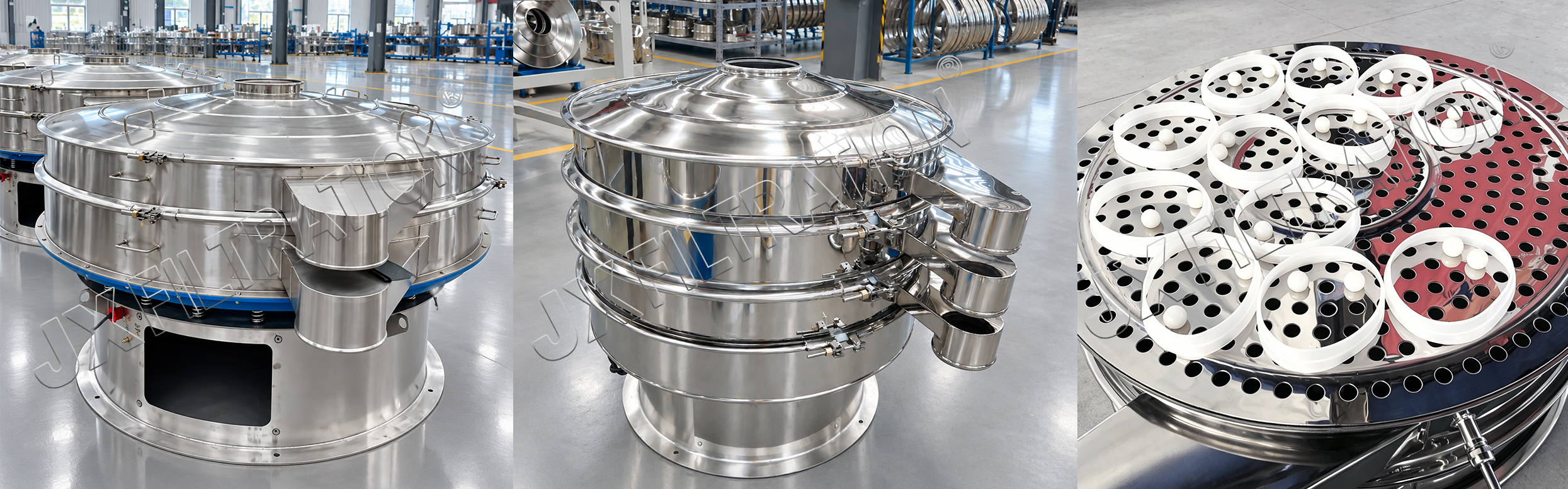

High screening precision – With bounce ball design, no block of 5 microns wire mesh; suitable for powders, particles, and liquids
Customizable mesh size – Screen mesh from 2 to 500 microns/inch to suit various material requirements
