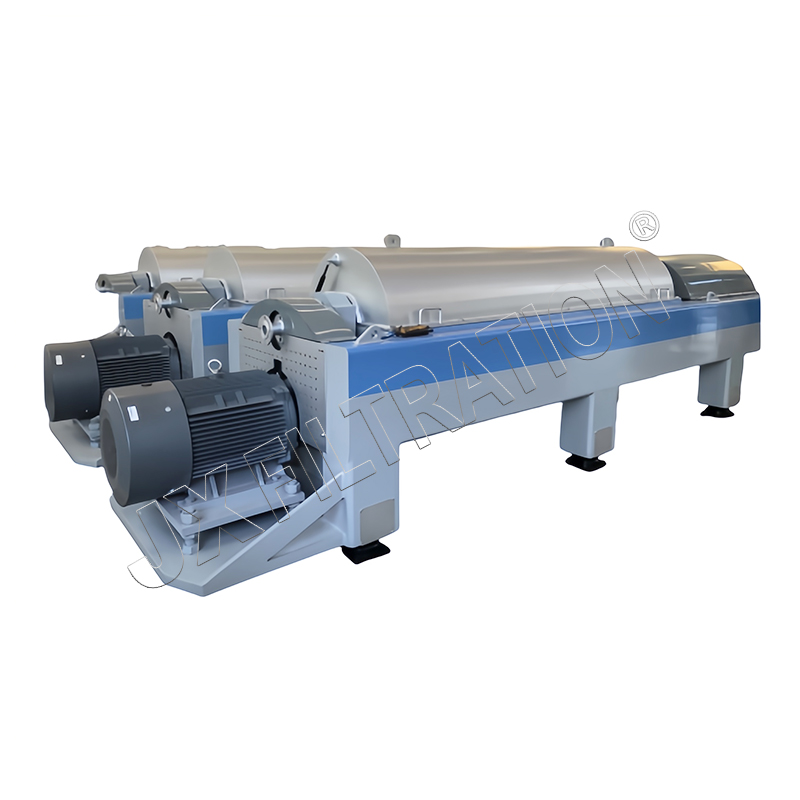

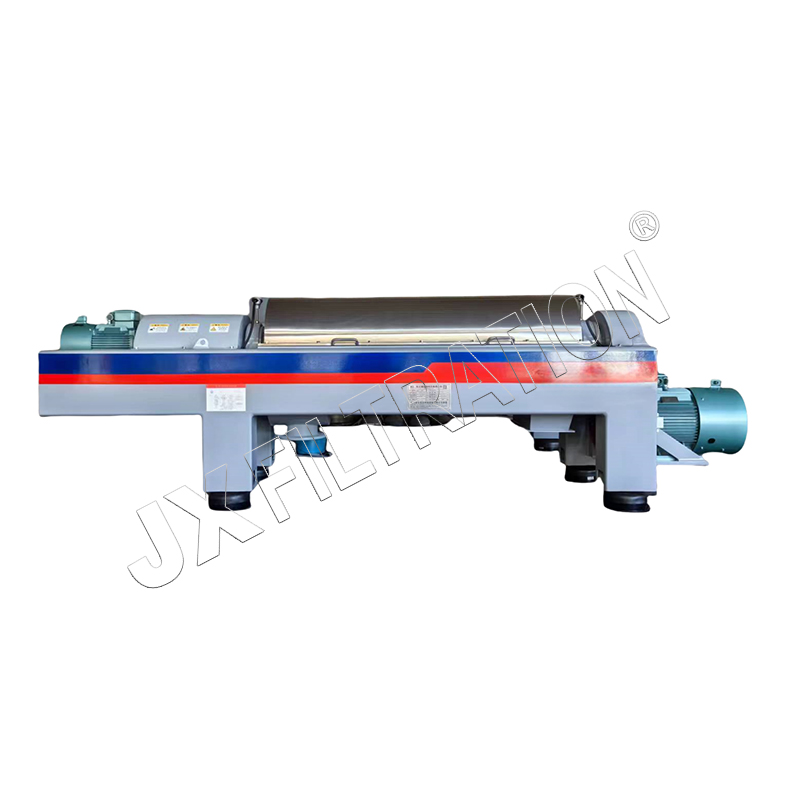

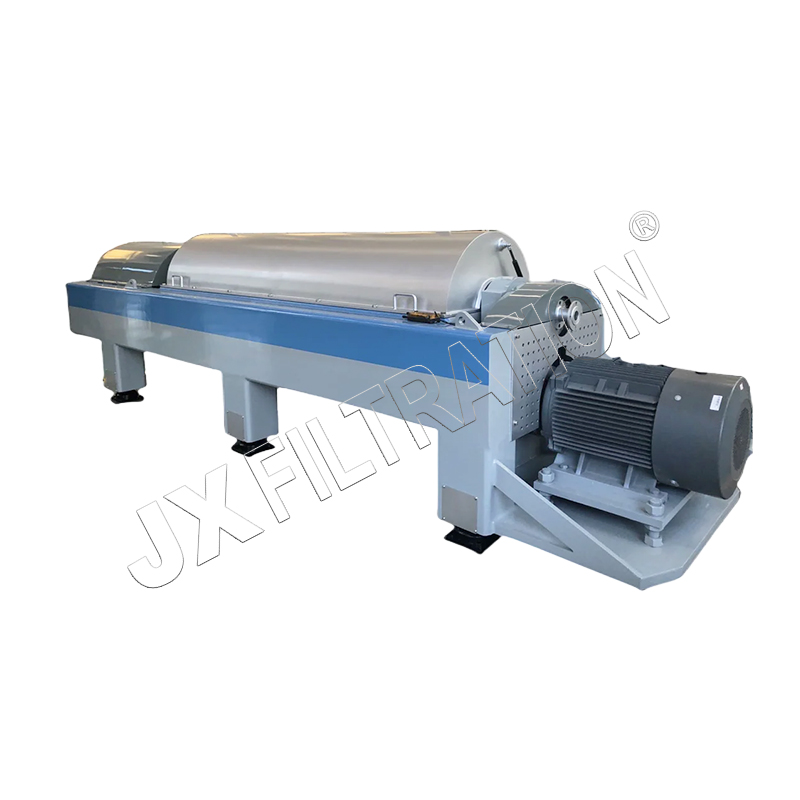

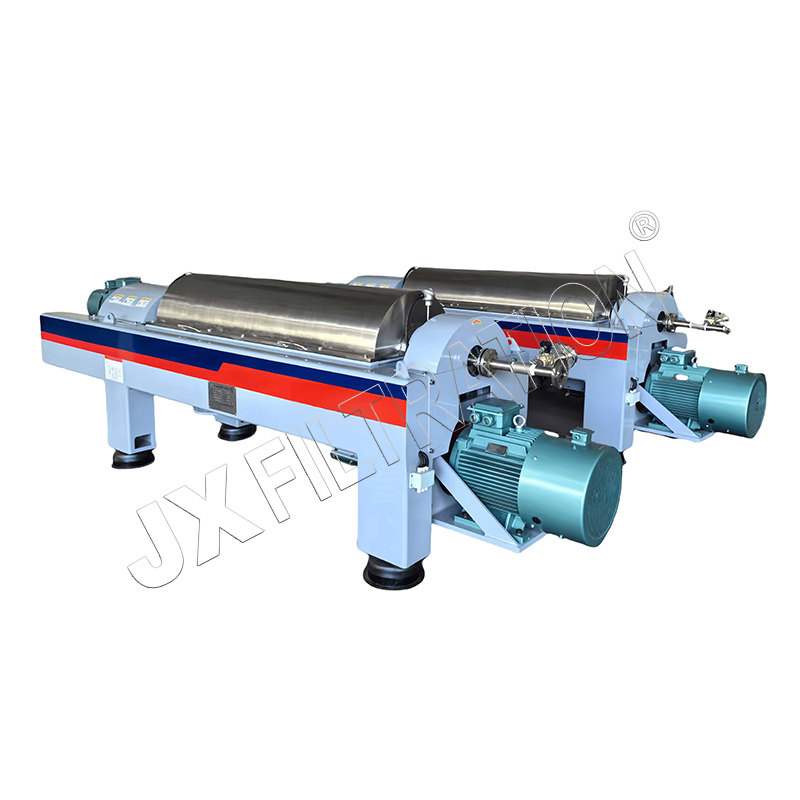

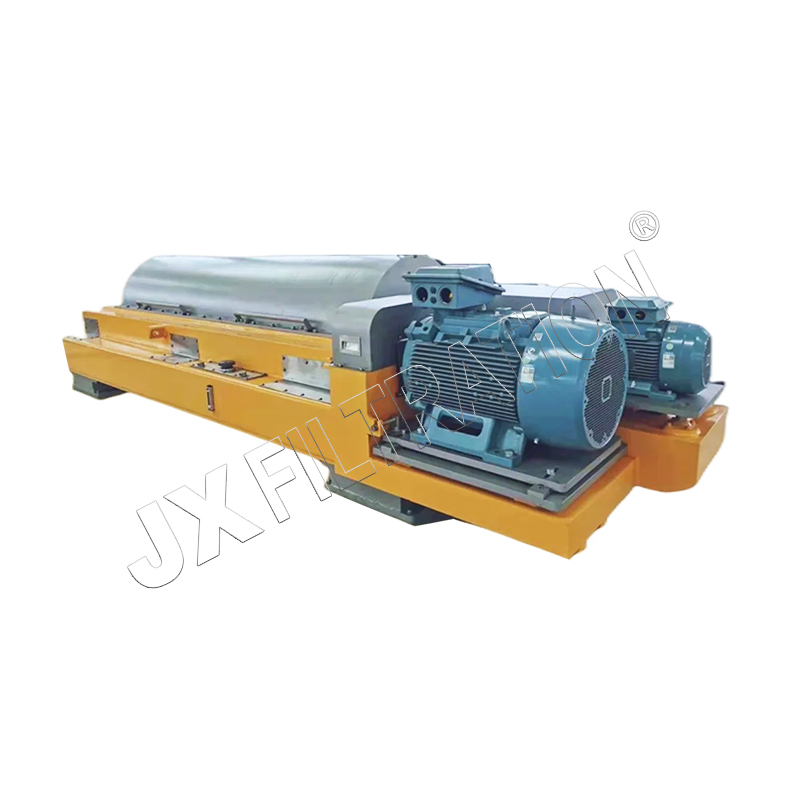

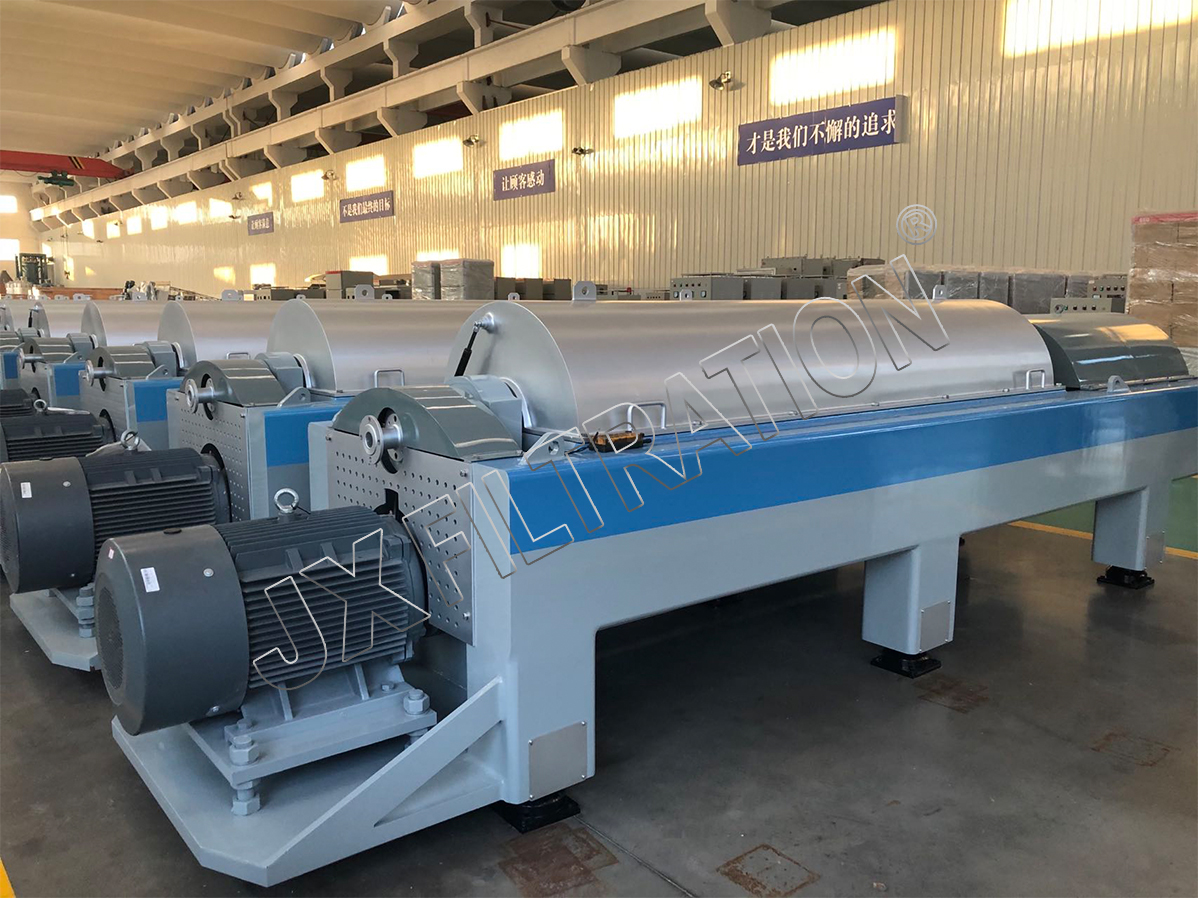

Name: Horizontal Decanter Centrifuge
Brand: JX Filtration

Description

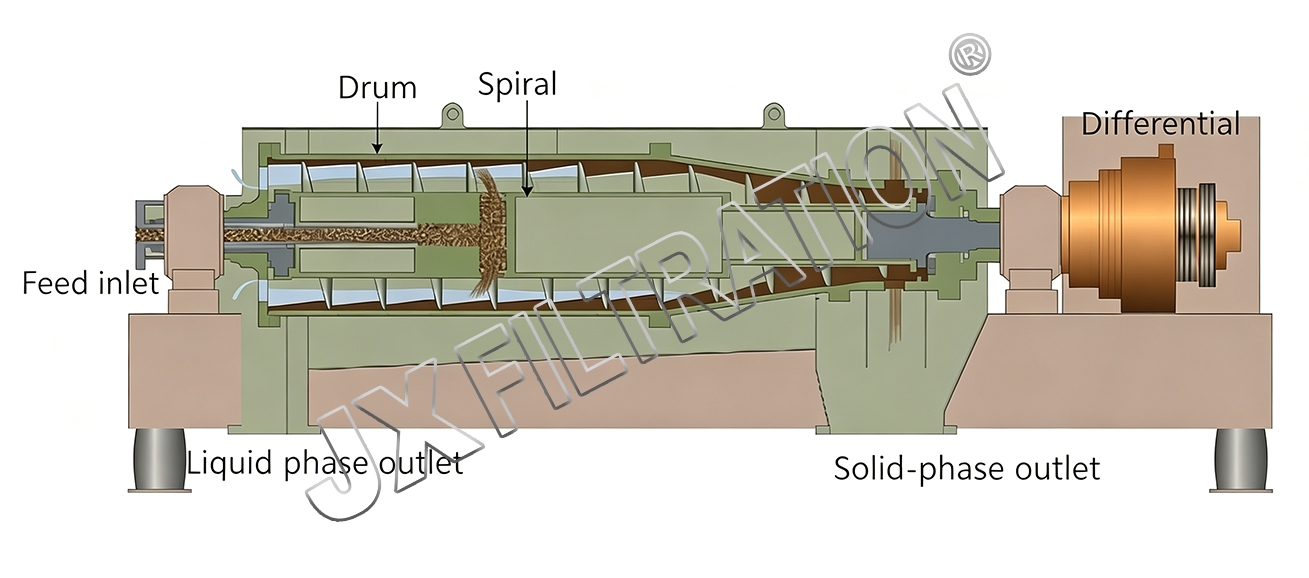

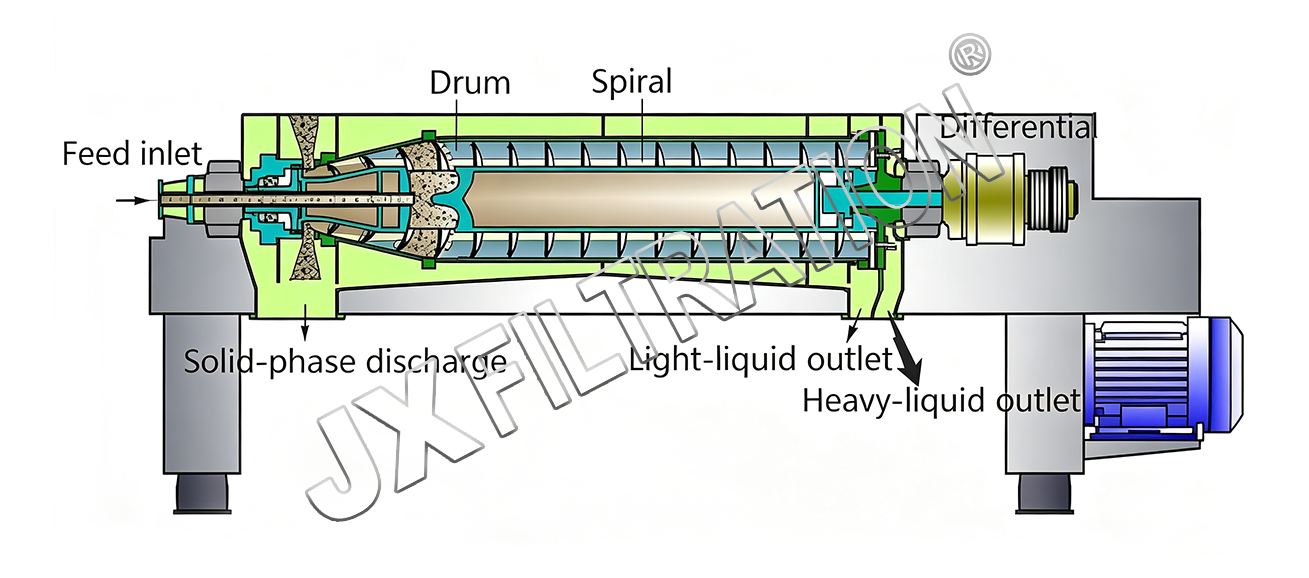

JX Filtration's Horizontal Decanter Centrifuge is a continuous solid-liquid separation equipment engineered for high-efficiency processing across diverse industrial sectors. Available in two-phase (solid-liquid) and three-phase (liquid-liquid-solid) configurations, our centrifuges are built to handle demanding separation tasks with reliability and precision.

Working Principle

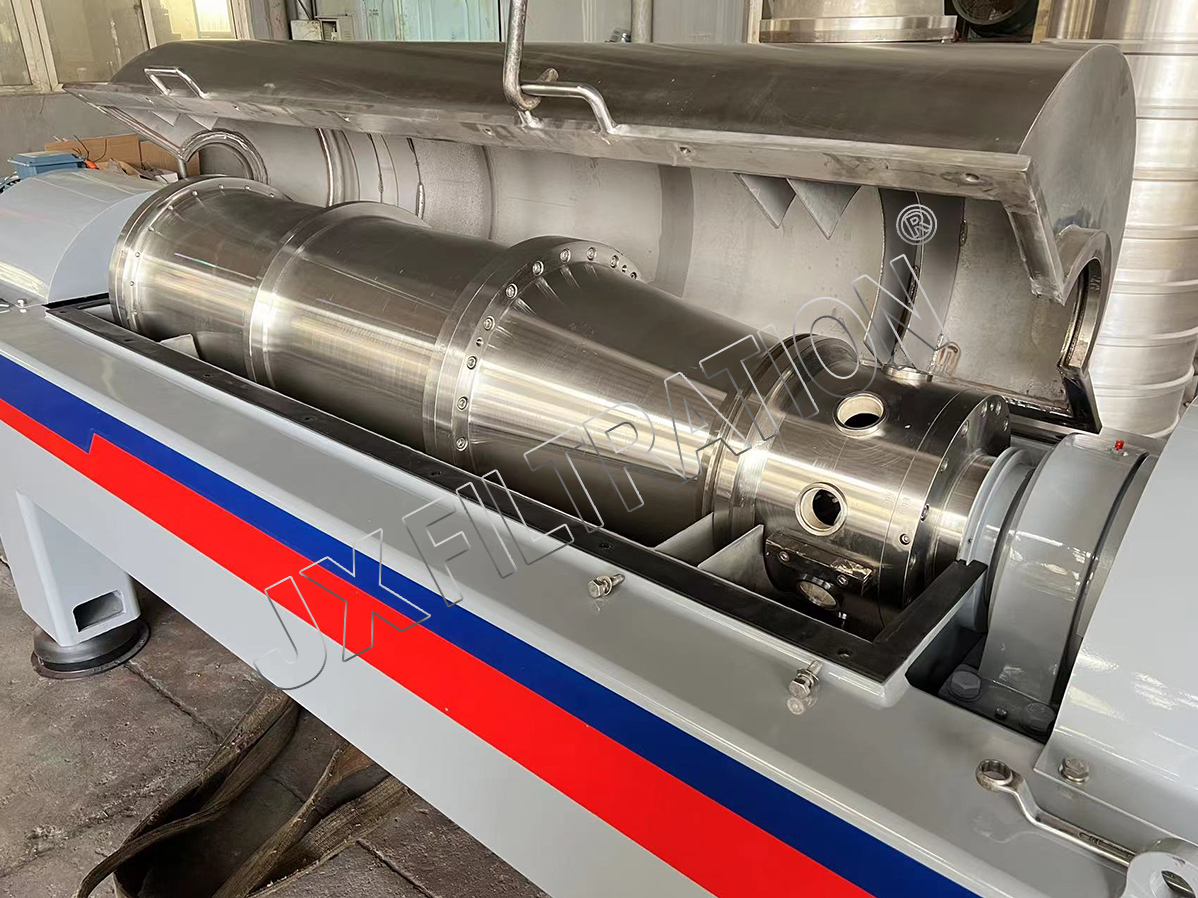

The centrifuge operates with the bowl and screw conveyor rotating at high speed in the same direction with a controlled differential speed. Material is fed into the high-speed rotating bowl through the feed pipe, where powerful centrifugal force causes solid particles to sediment on the bowl wall. The screw conveyor, rotating at a slightly different speed, continuously transports the accumulated solids toward the conical discharge end, while the clarified liquid overflows through the adjustable plate dams. The machine can continuously feed, separate, and discharge materials at full speed operation.

Advantages

Higher capacity with compact footprint — achieves separation factors up to 4,000×G
Continuous operation — automatic feeding, separation, and discharge without interruption
Energy-saving — dual motor variable frequency control with stepless speed adjustment
High precision — can separate solid particles down to 0.002mm
Low maintenance — no filter cloth or screen required, eliminating clogging issues
Fully enclosed operation — clean, safe, and pollution-free working environment
Smart control — integrated PLC system for intelligent monitoring and fault detection
Wear-resistant design — tungsten carbide and ceramic tile protection on critical components

Application

Chemical Industry
Pharmaceutical Industry
Food & Beverage Industry (dairy processing, edible oil refining, starch processing, wine clarification)
Environmental Protection / Wastewater Treatment
Mining & Mineral Processing
Oil & Gas Drilling
Starch Processing
Paint & Pigment Recovery

Materials & Specifications

Materials: Carbon steel, stainless steel 304, 316, 316L, and 2205 duplex stainless steel.

Key Parameters: Bowl diameters from 220mm to 800mm, processing capacity up to 130 m³/h, separation factor up to 4,000×G, differential speed 1–30 rpm variable control.
